Custom CNC Machined Parts Gallery
Representative CNC turned and milled parts reviewed from customer drawings. These are not stock products. Material, tolerance, quantity, finish and inspection requirements are confirmed for each RFQ.

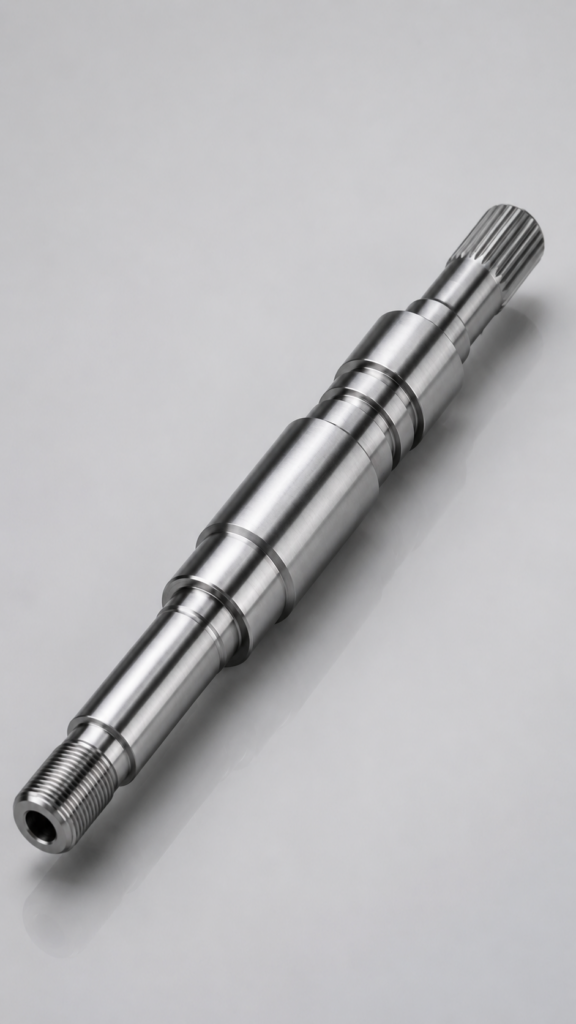

304 Stainless Steel Stepped Shaft
Material: 304 stainless steel
Process: CNC turning, threading, drilling, chamfering
Critical Features: Diameter control, thread fit, straightness and end features reviewed from drawing
Order Type: Prototype or small batch RFQ review
304 Stainless Steel Threaded Connector
Material: 304 stainless steel
Process: CNC turning, external threading, bore control, deburring
Critical Features: Thread standard, mating fit, sealing edge and burr control checked before quotation
Order Type: Small batch connector parts
Steel Bushings & Sleeves
Material: Carbon steel / stainless steel after drawing review
Process: CNC turning, boring, groove machining, chamfering
Critical Features: Critical ID / OD dimensions, groove position and bore finish reviewed from drawing
Order Type: Prototype and batch quotation
Brass Internal Thread Sleeve
Material: Brass
Process: CNC turning, internal threading, ID / OD control
Critical Features: Internal thread, length, groove position and assembly fit reviewed from drawing
Order Type: Small batch sleeve RFQ
Turned Pins & Spacers
Material: Steel, stainless steel, aluminum or brass after review
Process: CNC turning, facing, chamfering, drilling when required
Critical Features: Length, diameter, end condition and burr control reviewed from drawing
Order Type: Pins, spacers and short shaft batches
Custom Drawing-Based Parts
Material: Material selected from drawing or application requirement
Process: CNC turning, milling, drilling, tapping or combined machining
Critical Features: Critical dimensions reviewed from drawing; tolerance confirmed before quotation
Order Type: Non-standard OEM parts from drawings or sample photos
Need a different part?
Need a different part? Upload a drawing or sample photo for review.
How to Use This CNC Machined Parts Gallery for RFQ
This gallery is a reference for buyers comparing CNC turned parts, sleeves, shafts, threaded fittings, and custom drawing parts before quotation.
Representative machining examples. Final pricing depends on drawing, material, quantity, tolerance, and inspection requirements.
Buyer Checks
- Identify the closest part family before sending a drawing.
- Mark critical diameters, threads, bores, grooves, and surface areas.
- Send sample photos when CAD files are not available.
RFQ Details to Send
- Accepted files: STEP, STP, PDF, DXF, DWG, IGES, JPG, PNG, ZIP.
- Include material grade, quantity, tolerance, and surface finish.
- Add application notes if the part has fit, sealing, sliding, or assembly requirements.
