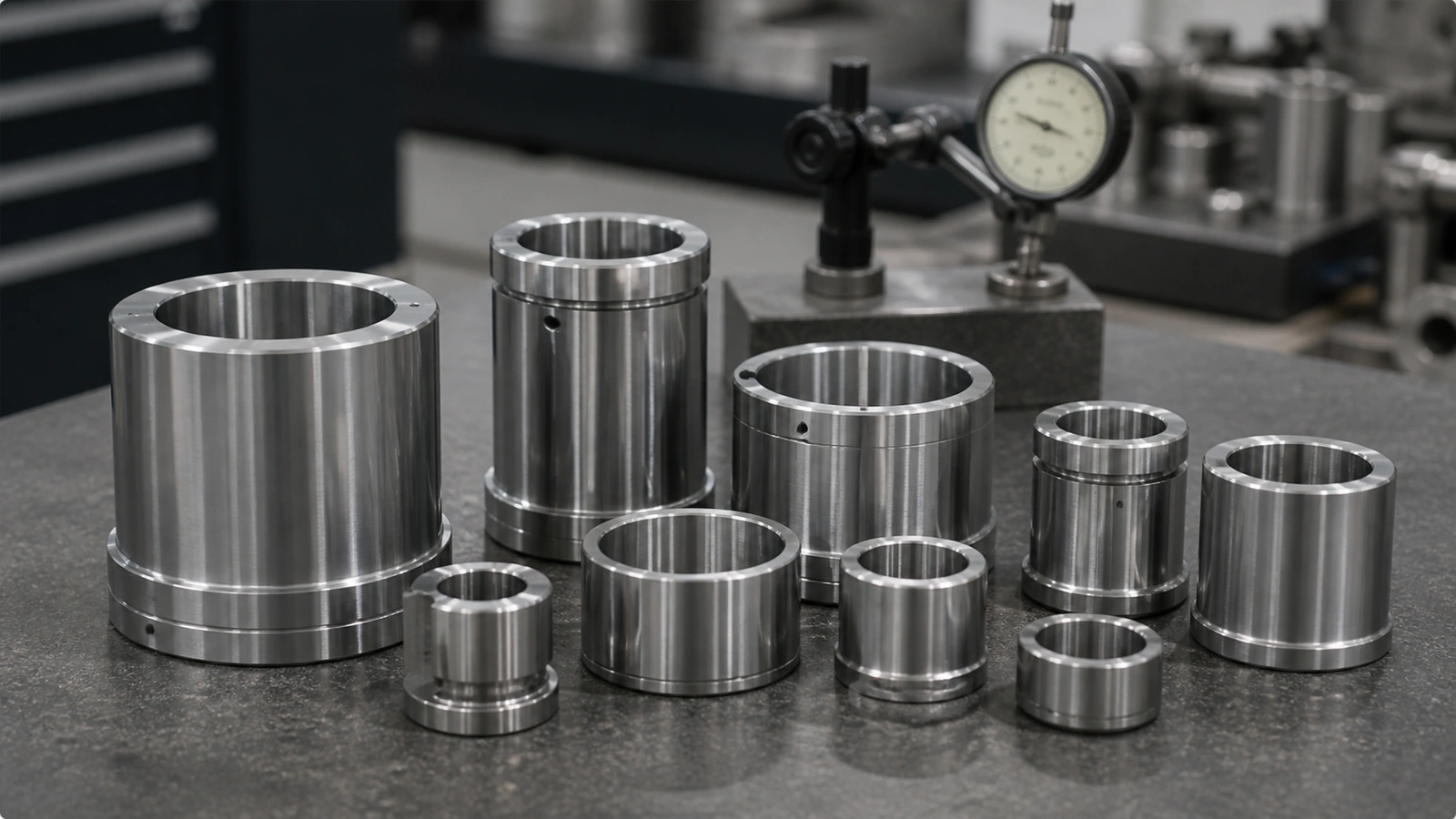

Custom Sleeve CNC Turning Case Study
This representative custom sleeve CNC turning case study focuses on sleeve components where inner diameter accuracy, bearing surfaces and assembly requirements must be reviewed before quotation.
Project Overview
Sleeve components require clear definition of inside diameter, outside diameter, length, chamfers, grooves and surface requirements. MasterCNC Precision reviews the drawing to identify fit-related features and manufacturing risks.
Part Application
Custom sleeves are used as spacing, bearing, alignment or protective components in many mechanical assemblies.
- Sleeve components
- Bearing surfaces
- Spacers and cylindrical inserts
- Assembly support parts
Material
Machined metal or specified engineering material according to the customer drawing
Manufacturing Process
- CNC Turning
- Bore Machining
- Chamfering
- Groove Machining when specified
- Deburring and inspection
Key Challenges
- Inner diameter accuracy
- Bearing surface quality
- Coaxial and fit-related requirements
- Assembly requirements that affect edge breaks and chamfers
Quality Control
- Drawing review for ID, OD and length requirements
- Inspection of critical fit dimensions
- Visual and burr control before packing
Buyer Benefits
- Support for custom sleeve prototypes
- Small batch production for assembly validation
- OEM supply coordination for repeated sleeve designs
Engineering Support Before Production
Before production, MasterCNC Precision reviews drawings, materials, tolerances and manufacturing requirements to help buyers confirm whether the parts are suitable for CNC machining.
- Drawing review before quotation
- Manufacturability feedback for critical features
- Material and quantity confirmation
- Inspection requirements checked against the drawing
Related CNC Machining Services
For similar drawing-based projects, review our CNC Turning Services, Precision Turned Parts Manufacturer page, or send drawings through the RFQ page.
Frequently Asked Questions
What should be included in a custom CNC sleeve drawing?
The drawing should include inside diameter, outside diameter, length, material, chamfers, grooves, tolerances and surface requirements.
Why is inner diameter accuracy important for sleeve parts?
The inner diameter often controls bearing, spacing or assembly fit, so it should be reviewed before quotation and machining.
Can MasterCNC Precision review sleeve manufacturability?
Yes. We review drawings and manufacturing requirements before quotation to identify unclear features or fit-related risks.
