MasterCNC Precision helps buyers review custom metal part drawings and prepare practical CNC machining RFQs. This page is for non-standard parts made from customer drawings, including shafts, sleeves, connectors, blocks and small precision components.

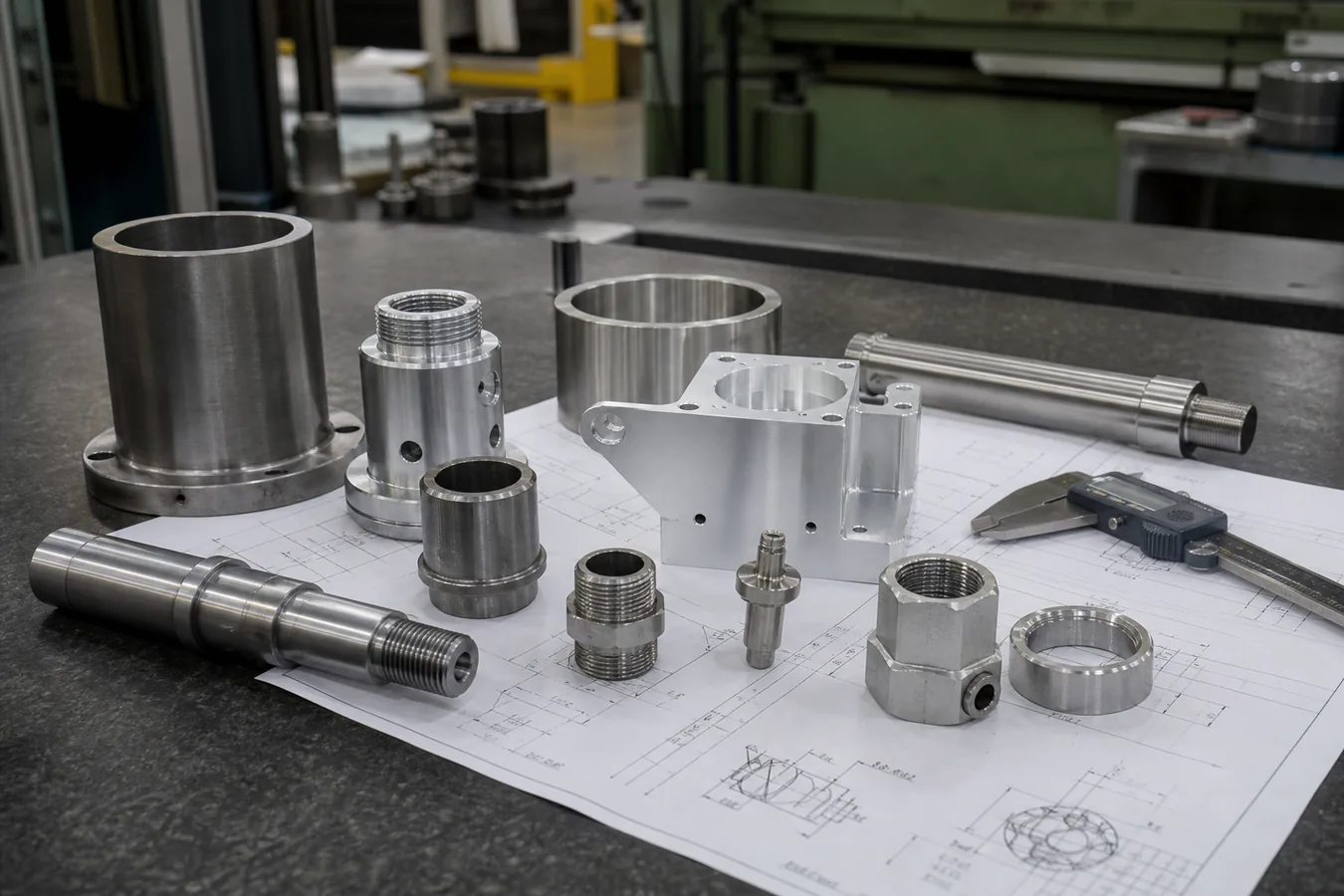

Representative machining example. Images on this page illustrate typical parts, materials and review points for quotation discussion.
Custom Parts From Drawings
Custom metal parts usually require more than a simple material price check. Before quotation, we review the drawing, part geometry, material grade, tolerance notes, surface requirements, quantity and inspection needs.
- Drawing-based CNC turning and CNC milling review
- Material and finish confirmation before quotation
- Critical dimensions reviewed from drawing
- Prototype, small batch and OEM production discussion
Typical Parts We Review
The suitable process depends on the part shape and functional surfaces. Some parts are mainly turned, some are milled, and some require combined machining.
- Shafts, pins and stepped cylindrical parts
- Sleeves, bushings, spacers and collars
- Threaded connectors, adapters and fittings
- Small milled blocks, plates, brackets and housings
RFQ Information That Helps
For a faster review, send the drawing or sample photo together with material, quantity, finish, tolerance and inspection notes. If some details are not fixed, we can identify the points that need confirmation before quotation.
- 2D drawing or 3D model
- Material grade and surface finish
- Quantity and expected production stage
- Critical fit, thread, bore or cosmetic requirements
Custom Metal Parts for Prototype and Small Batch RFQs
For custom metal parts, the quotation review depends on how the part will be used and how many pieces are required. Prototype parts may need faster drawing feedback, while small batch orders usually need stable machining steps, repeatable dimensions and clear inspection points before production.
- Prototype and engineering sample review from drawings or sample photos
- Small batch CNC machining discussion for non-standard metal parts
- OEM part requirements reviewed before material purchase or machining
- Quantity, finish and inspection scope checked before quotation
Engineering Review Points for Custom Metal Parts
Before quoting a custom part, we check whether the geometry is more suitable for CNC turning, CNC milling or a combined process. For turned parts such as shafts and pins, diameter control, threads and concentricity are important. For bushings, sleeves and spacers, inner diameter, outer diameter, length and fit requirements need careful review. For connectors and fittings, thread form, sealing surfaces and deburring requirements should be confirmed from the drawing.
- Material: stainless steel, carbon steel, aluminum, brass or engineering plastics
- Process: CNC turning, CNC milling, thread machining, drilling or deburring
- Tolerance and fit: critical dimensions, bore fit, shaft fit and thread requirements
- Surface finish: functional surface, cosmetic surface and protection during packing
- Inspection: dimensions and features that should be checked before shipment
Frequently Asked Questions
What custom metal parts can you review for quotation?
We can review drawings for shafts, pins, bushings, sleeves, spacers, threaded fittings, connectors, blocks, plates and other non-standard CNC machined metal parts.
Do you support prototype and small batch custom parts?
Yes. MasterCNC Precision supports prototype discussion and small batch CNC machining based on customer drawings, material requirements and quantity information.
What information is needed for a custom metal parts quote?
A 2D drawing, 3D model or sample photo is helpful. Material, quantity, tolerance, surface finish and inspection requirements make the quotation review more accurate.
Related CNC Machining Pages
Get Quote
Send your drawing or sample photo for a custom CNC machining review. We will check the part requirements before preparing a quotation.
Send Drawing for Practical Review
Upload PDF, DWG, DXF, STEP, STP, IGES, X_T, SLDPRT, JPG, PNG or ZIP files with material, quantity, tolerance and inspection notes.
