Quick Answer
To quote CNC turned shafts from drawings, buyers should send the 2D drawing, STEP or STP model, material grade, quantity, critical diameters, thread details, straightness or runout notes, surface finish, and inspection requirements.

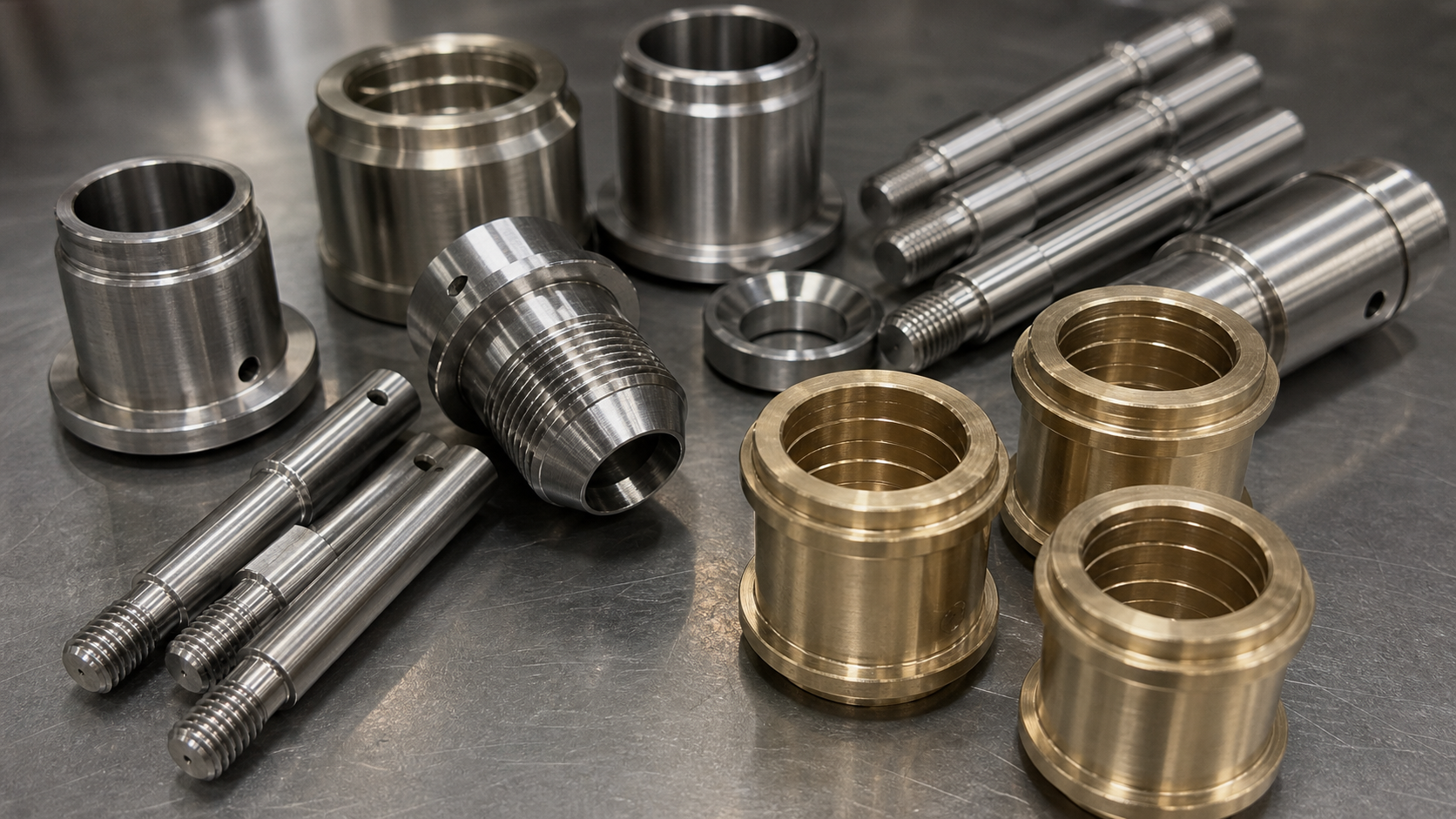

CNC turned shafts often look simple from a distance, but quotation accuracy depends on the drawing details. Bearing seats, threads, cross holes, grooves, shoulders, straightness, surface finish, and packing protection can all affect process planning and cost.
Buyer problem
Many shaft RFQs arrive with only a photo or a model file. Without a 2D drawing, the supplier may not know which diameters are functional, whether the threaded end needs a specific gauge, or whether straightness and surface marks affect assembly.
Engineering explanation
A shaft quote should review how the material is held, how each diameter is turned, whether secondary drilling or milling is required, and how critical features will be inspected. Long or slender shafts need additional attention because vibration, support method, and handling can affect straightness and surface condition.
Key factors for quotation
- Material grade such as 304 stainless steel, carbon steel, alloy steel, aluminum, or brass
- Critical OD, bearing seat, groove, shoulder, thread, and end-hole dimensions
- Length-to-diameter ratio, straightness, runout, and surface finish requirements
- Prototype quantity, small batch quantity, and possible repeat demand
- Inspection method, packing protection, and shipping handling notes
Buyer checklist
- Confirm drawing revision and units before quotation
- Mark which diameters control fit or rotation
- Define thread standard, pitch, thread length, and chamfer needs
- State whether straightness, runout, or surface finish should be inspected
RFQ file checklist
- PDF drawing with tolerance and thread notes
- STEP or STP model for geometry review
- Material grade and quantity
- Inspection report, gauge check, or packing requirement if needed
Common mistakes
- Sending only a 3D model without tolerance or thread notes
- Not marking bearing seats and mating diameters as critical
- Forgetting cross holes, keyways, flats, or secondary milling features
- Ignoring surface protection when shafts are polished or packed together
What buyers should prepare before RFQ
For drawing-based CNC machining, the most useful RFQ package includes a 2D drawing for tolerances and notes, a 3D model for geometry review, material grade, quantity, surface finish, and the application or assembly function of the part. If the part connects with another component, include thread standard, mating dimensions, bearing seat information, or sample photos when available.
Buyers do not need to solve every manufacturing detail before sending an RFQ. The important point is to make the engineering intent clear: which features must fit, which surfaces are cosmetic, which dimensions are critical, and whether the order is for prototype testing, small batch production, or repeat OEM supply.
How to judge supplier feedback
A useful supplier response should not only repeat the part name and unit price. It should show that the drawing was reviewed: material, tolerance, process route, critical dimensions, finish, inspection points, and packing requirements should all be considered. If a supplier quotes immediately without asking about missing tolerance, thread, material, or quantity details, the quotation may be based on assumptions rather than engineering review.
Before comparing prices, check whether each supplier is quoting the same scope. One price may include deburring, thread inspection, surface protection, and export packing, while another may only include basic machining. For OEM buyers, the cheapest quote can become expensive if the first batch requires rework, unclear inspection, or repeated communication after production has already started.
Practical RFQ example
For a stepped shaft with threaded ends, the buyer should identify the bearing seat diameters, thread standard, shoulder contact faces, cross holes, groove locations, and any surface areas that must avoid scratches during packing. The quotation should be based on those functional features, not only the overall length and diameter.
When you prepare a similar project, avoid sending only a part name. A useful RFQ should explain what the part does, which dimensions affect assembly, whether surface marks matter, and whether the project is a one-time prototype or a repeat production candidate.
How we support RFQ review
MasterCNC Tech reviews shaft RFQs by checking drawing completeness, process route, material, tolerance, critical features, inspection points, and packing risk before quotation.
After receiving a complete RFQ, we review the drawing for manufacturability, compare the process route with the required tolerance, and check whether inspection needs are practical for the requested quantity. This helps reduce unclear quotation assumptions and gives buyers a more useful basis for comparing suppliers.
Final note for buyers
If you are not sure whether your drawing is complete, send what you have first. A useful first review can start from a PDF drawing, STEP file, old sample photo, or even a sketch with key dimensions. The important point is to start the discussion with material, quantity, tolerance expectations, and the part function, then clarify details before production.
