This page shows a Representative machining example for RFQ review. It should be used to understand part features, drawing information and inspection considerations, not as a claim about a specific customer order.
Project Overview

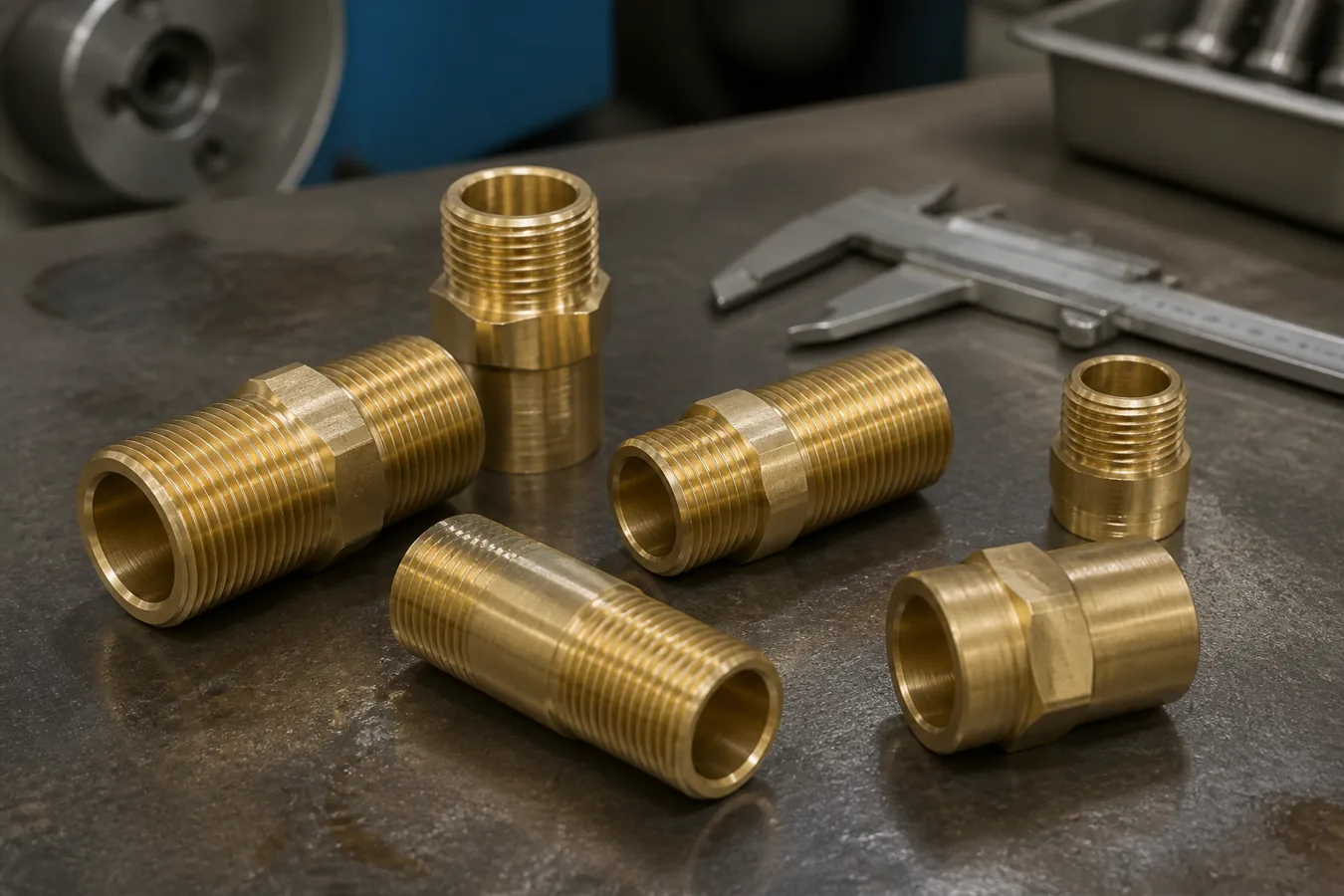

The example part is a brass threaded connector. MasterCNC reviews this type of drawing by checking material, machining process, critical dimensions, finishing notes, inspection requirements and quantity before quotation.
Material
Brass
Manufacturing Process
CNC Turning, thread machining, bore machining, facing and deburring
Engineering Challenge
Threaded brass components require attention to thread quality, burrs and mating fit before quotation.
Critical Feature
External thread, bore opening, wrench flats or shoulders, chamfer and burr control.
Inspection Focus
Thread review, bore check, length check, edge condition and surface finish review.
Order / Production Type
Prototype or small batch representative machining example. Final production planning depends on confirmed drawings, material availability, quantity and inspection scope.
Buyer Takeaway
Include thread standard, material grade, quantity and assembly notes with the RFQ to avoid quotation assumptions.
