This page shows a Representative machining example for RFQ review. It should be used to understand part features, drawing information and inspection considerations, not as a claim about a specific customer order.
Project Overview

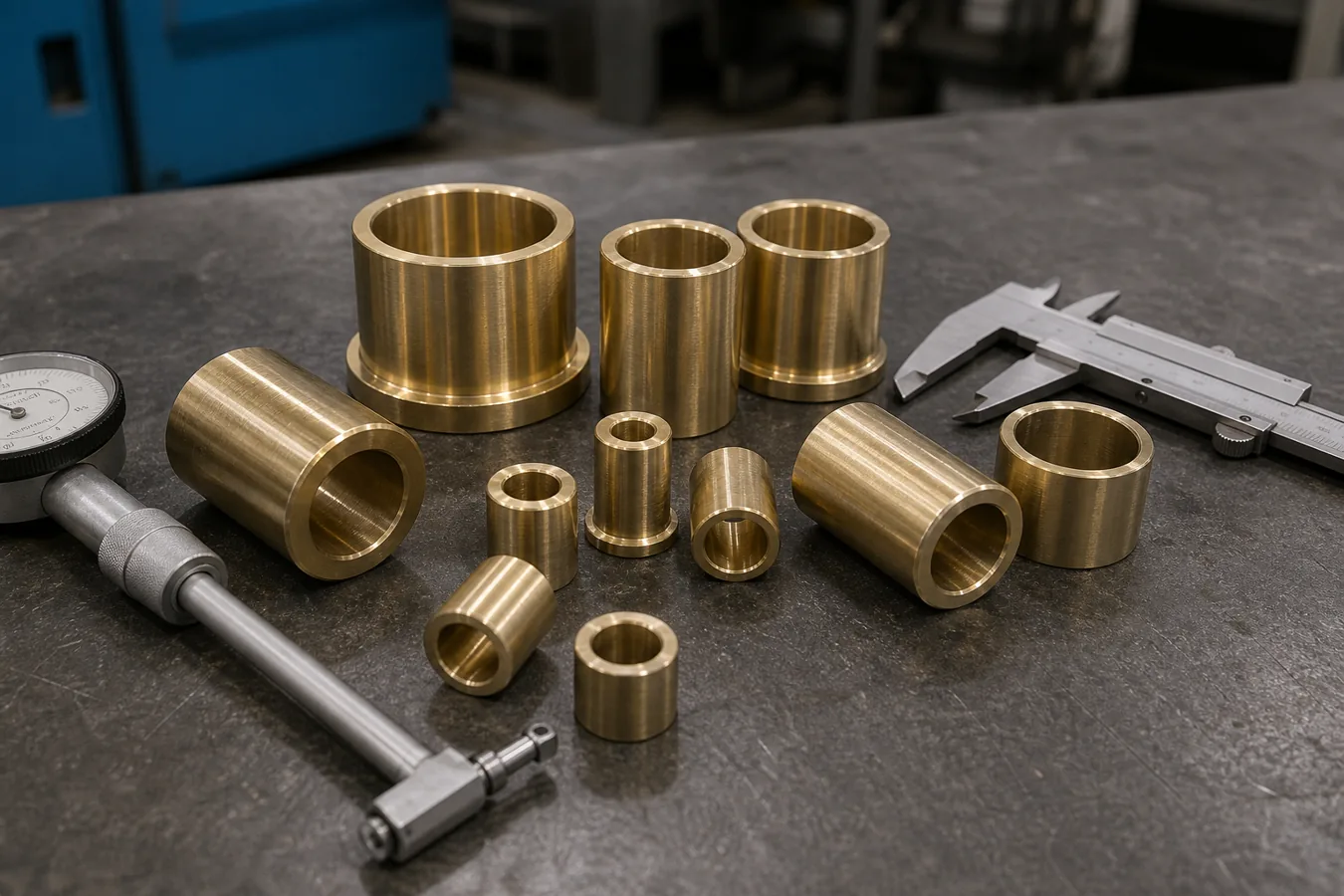

The example part is a brass bushing set. MasterCNC reviews this type of drawing by checking material, machining process, critical dimensions, finishing notes, inspection requirements and quantity before quotation.
Material
Brass
Manufacturing Process
CNC Turning, bore machining, facing, chamfering and deburring
Engineering Challenge
Bushing sets need ID and OD review because bore fit, wall thickness and length can affect assembly performance.
Critical Feature
Inner bore, outside diameter, length, chamfer and burr control.
Inspection Focus
ID / OD inspection, length check, bore surface review and drawing-based tolerance confirmation.
Order / Production Type
Prototype, replacement part or small batch representative machining example. Final production planning depends on confirmed drawings, material availability, quantity and inspection scope.
Buyer Takeaway
A drawing should identify the bore tolerance, mating shaft or housing fit, material and quantity before quotation.
