This page shows a Representative machining example for RFQ review. It should be used to understand part features, drawing information and inspection considerations, not as a claim about a specific customer order.
Project Overview

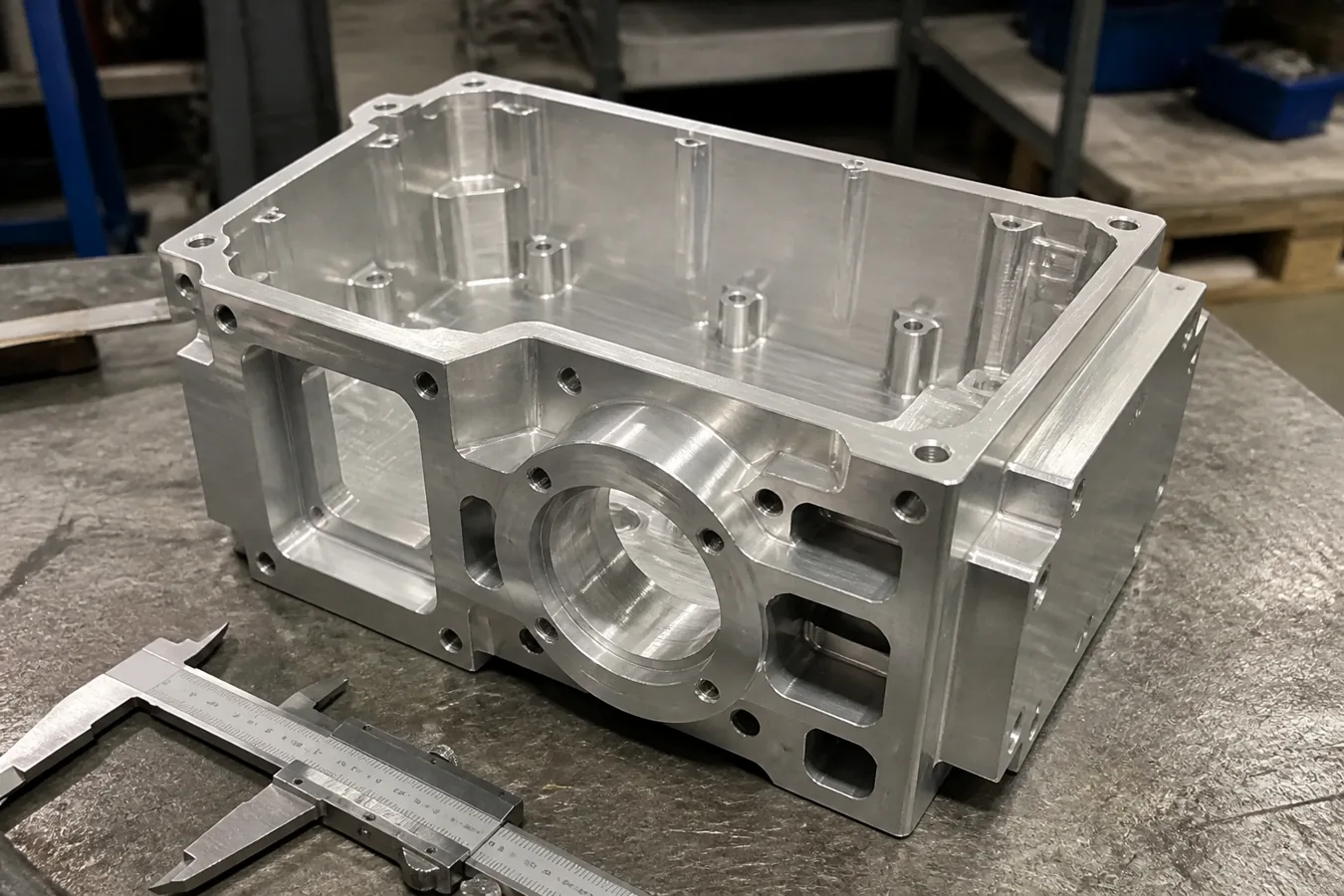

The example part is a aluminum CNC milled housing. MasterCNC reviews this type of drawing by checking material, machining process, critical dimensions, finishing notes, inspection requirements and quantity before quotation.
Material
Aluminum, grade to be confirmed from drawing
Manufacturing Process
CNC Milling, pocket machining, drilling, chamfering and deburring
Engineering Challenge
Housing parts often combine pockets, mounting holes and functional faces. Quotation should consider machining access, datum selection and deburring areas.
Critical Feature
Pocket geometry, hole position, mounting faces, edge breaks and surface damage control.
Inspection Focus
Drawing review for hole position, overall dimensions, pocket depth, flatness-related notes when specified, and final visual inspection.
Order / Production Type
Prototype or small batch representative machining example. Final production planning depends on confirmed drawings, material availability, quantity and inspection scope.
Buyer Takeaway
For housing RFQs, provide 3D models and 2D drawings so pocket geometry, hole location and inspection requirements can be checked together.
